2 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Three User Classes Cisco CallManager Express provides three levels of HTTP-based GUI access: System administrator Customer administrator Phone user

3 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v System and Customer Administrator Web-Based GUI

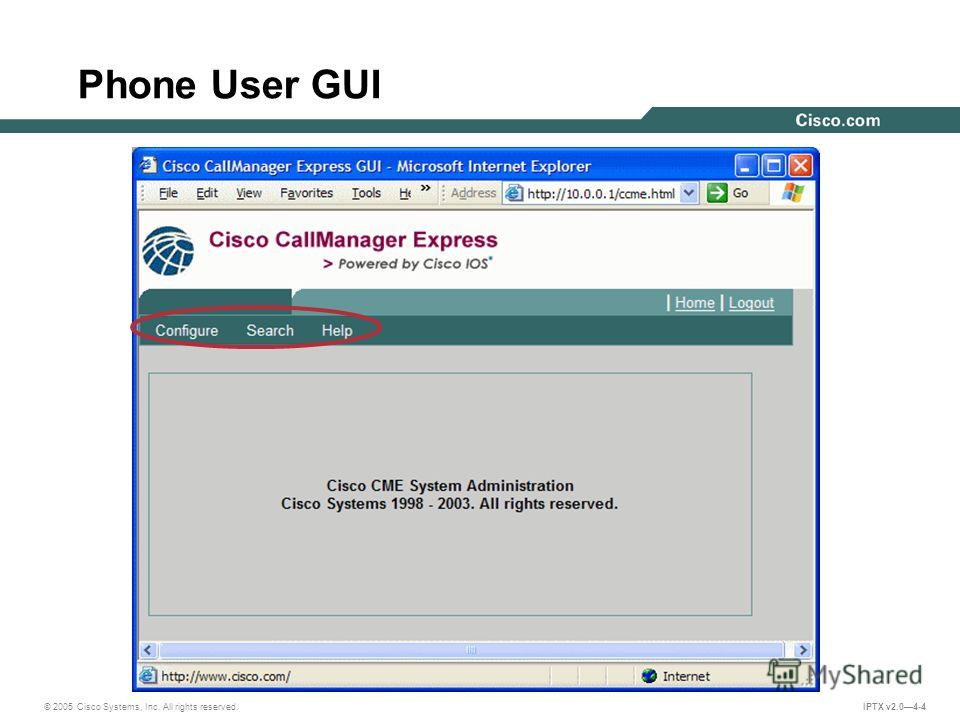

4 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Phone User GUI

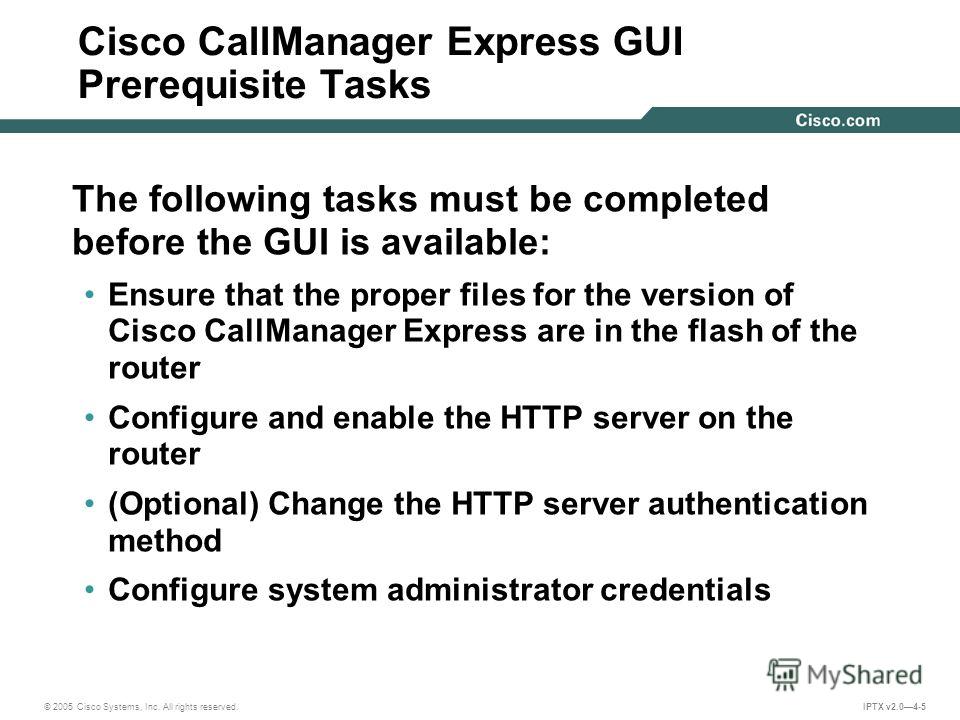

5 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Cisco CallManager Express GUI Prerequisite Tasks The following tasks must be completed before the GUI is available: Ensure that the proper files for the version of Cisco CallManager Express are in the flash of the router Configure and enable the HTTP server on the router (Optional) Change the HTTP server authentication method Configure system administrator credentials

6 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v ip http server CMERouter(config)# Enables the HTTP server on the router ip http path flash: CMERouter(config)# Sets the HTTP server path to the flash memory ip http authentication {aaa | enable | local | tacacs} CMERouter(config)# Determines the type of authentication used by the HTTP server Cisco CallManager Express GUI Prerequisite Tasks (Cont.)

7 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v telephony-service CMERouter(config)# Enters telephony-service configuration mode web admin system name username {password string | secret {0 | 5} string} CMERouter(config-telephony-service)# Sets a username and password for the GUI system administrator Cisco CallManager Express GUI Prerequisite Tasks (Cont.)

8 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v dn-webedit CMERouter(config-telephony-service)# (Optional) Enables the ability to add ephone directory numbers through the Cisco CallManager Express GUI time-webedit CMERouter(config-telephony-service)# (Optional) Enables the ability to set the system time through the Cisco CallManager Express GUI Cisco CallManager Express GUI Prerequisite Tasks (Cont.)

9 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Accessing the GUI Use IE 6.0 or greater. Use the URL. Enter either system administrator, customer administrator, or Phone user credentials when prompted.

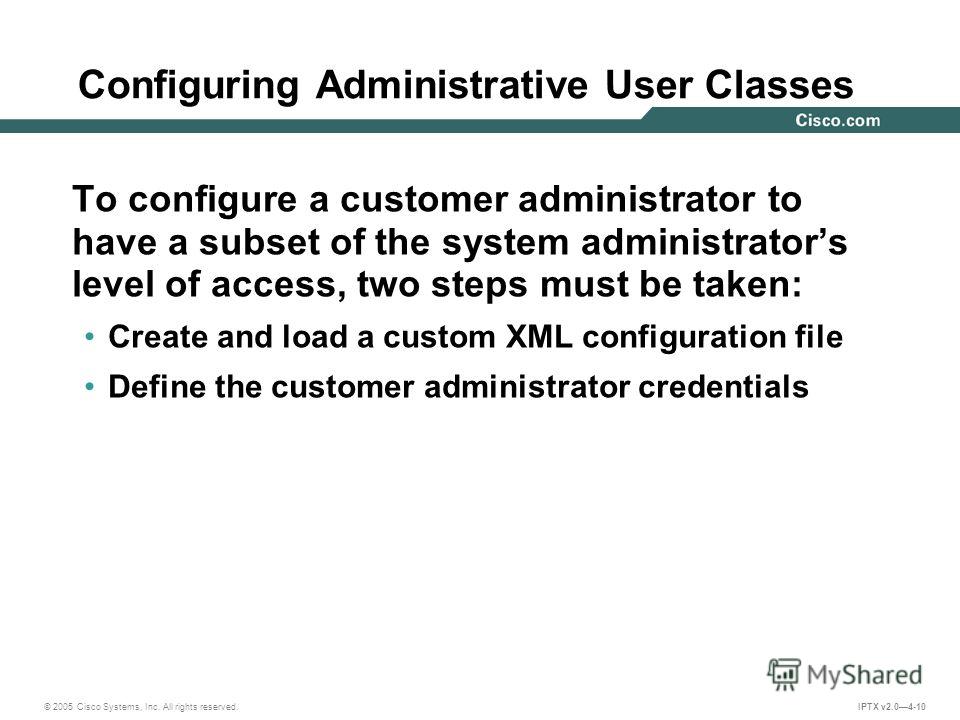

10 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Administrative User Classes To configure a customer administrator to have a subset of the system administrators level of access, two steps must be taken: Create and load a custom XML configuration file Define the customer administrator credentials

11 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Administrative User Classes (Cont.) Creating and loading an XML configuration file is a five-step process: Step 1 – In a text editor, open a copy of the xml.template file for the version of Cisco CallManager Express. Step 2 – Edit the file for desired changes to access. Step 3 – Save the file with a desired name. Step 4 – Upload to flash on the Cisco CallManager Express router via TFTP or FTP. Step 5 – Load the template from flash to the RAM on the Cisco CallManager Express router.

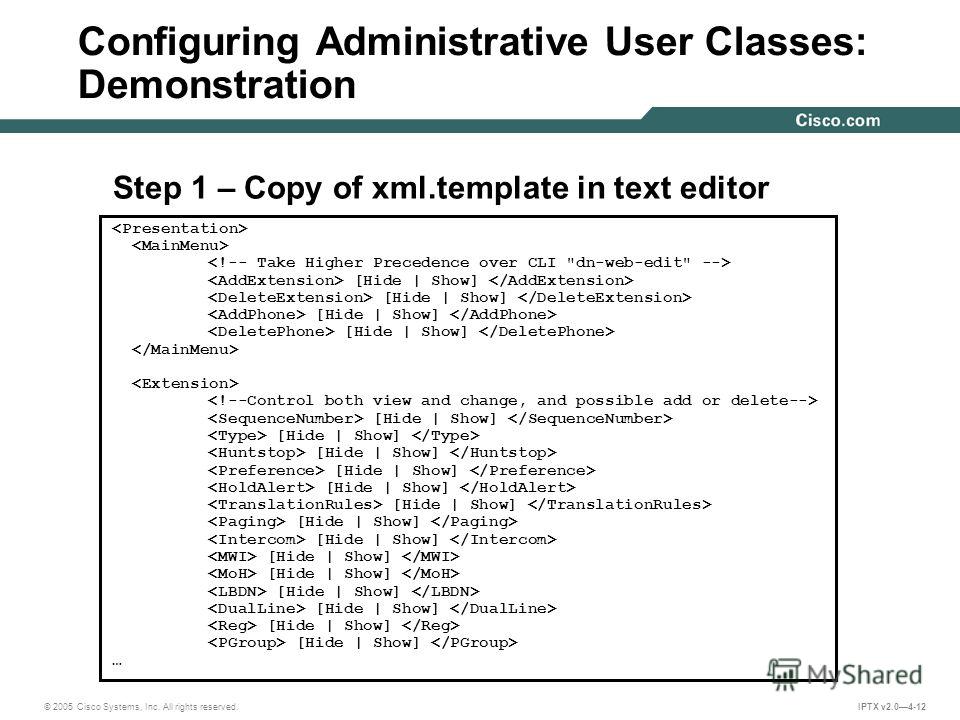

12 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Administrative User Classes: Demonstration Step 1 – Copy of xml.template in text editor [Hide | Show] [Hide | Show] …

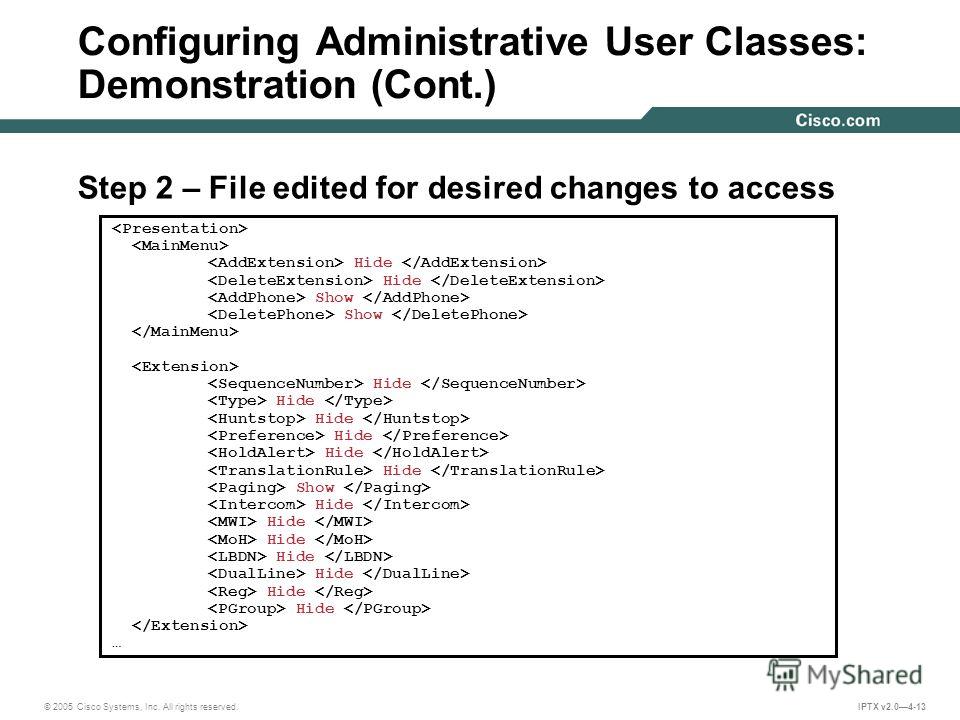

13 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Administrative User Classes: Demonstration (Cont.) Step 2 – File edited for desired changes to access Hide Show Hide Show Hide …

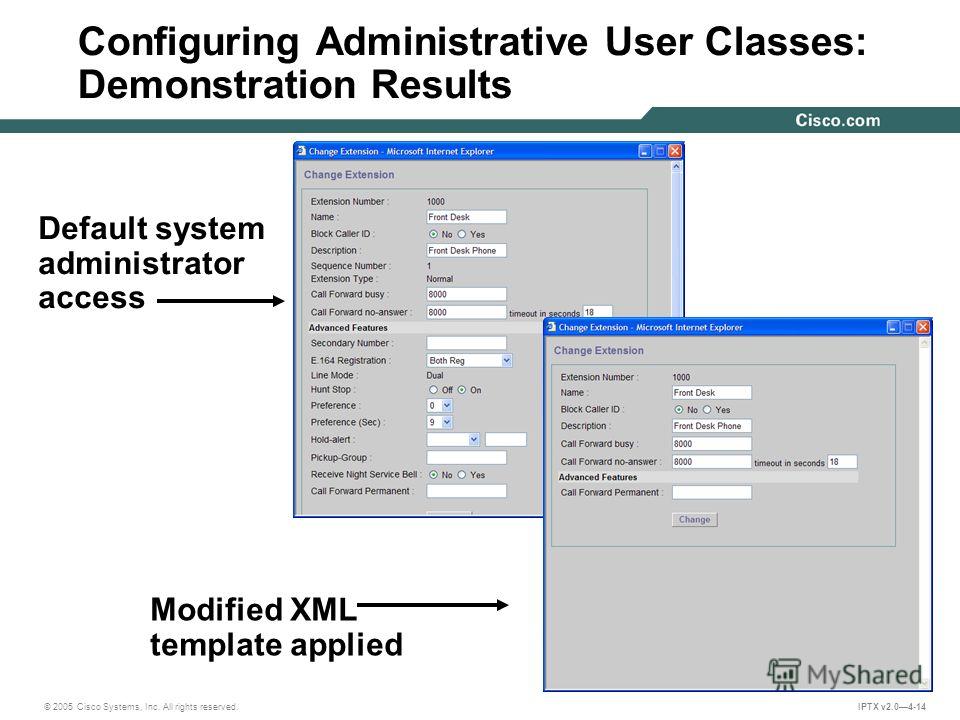

14 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Administrative User Classes: Demonstration Results Modified XML template applied Default system administrator access

15 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring the Customer Administrator Credentials Define the custom administrator credentials in one of two ways: Through the system administrator GUI From the CLI of Cisco CallManager Express

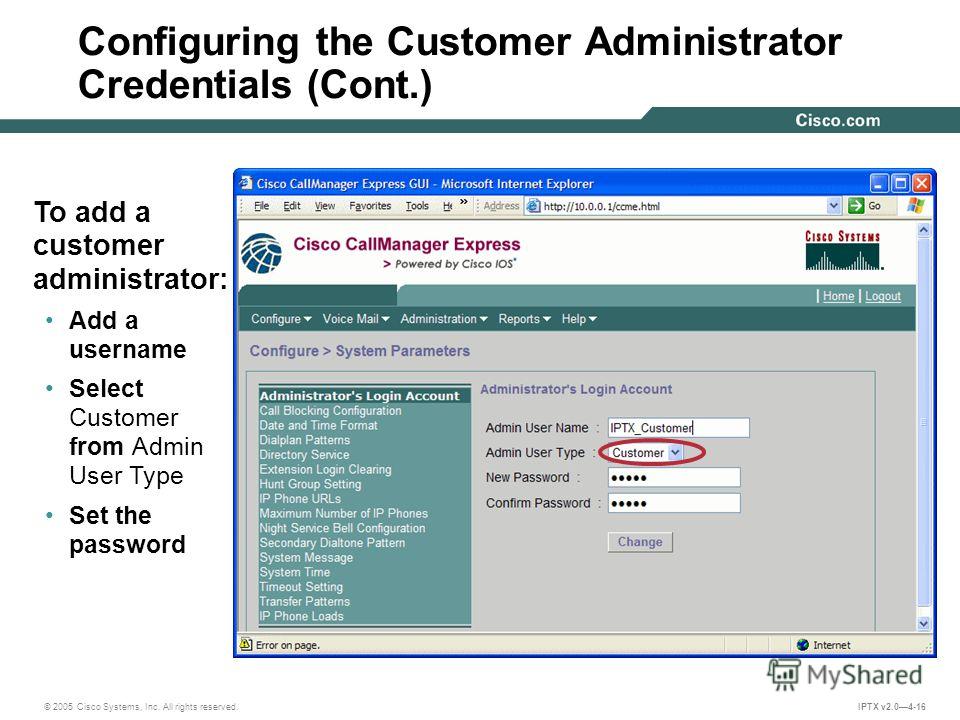

16 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring the Customer Administrator Credentials (Cont.) To add a customer administrator: Add a username Select Customer from Admin User Type Set the password

17 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v telephony-service CMERouter(config)# Enters telephony-service configuration mode web admin customer name username password string CMERouter(config-telephony-service)# Sets a username and password for the customer administrator GUI Configuring the Customer Administrator Credentials (Cont.)

18 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Phone User Classes There are two ways to define Phone users: Through the system administrator GUI From the CLI of Cisco CallManager Express

19 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Configuring Phone User Classes (Cont.) Select the Phone of the user, then set credentials on the phone.

20 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v ephone tag router(config)# Enters telephony-service configuration mode username username password password router(config-ephone)# Sets a username and password for the Phone user GUI (displayed in the configuration in clear text) Configuring Phone User Classes (Cont.)

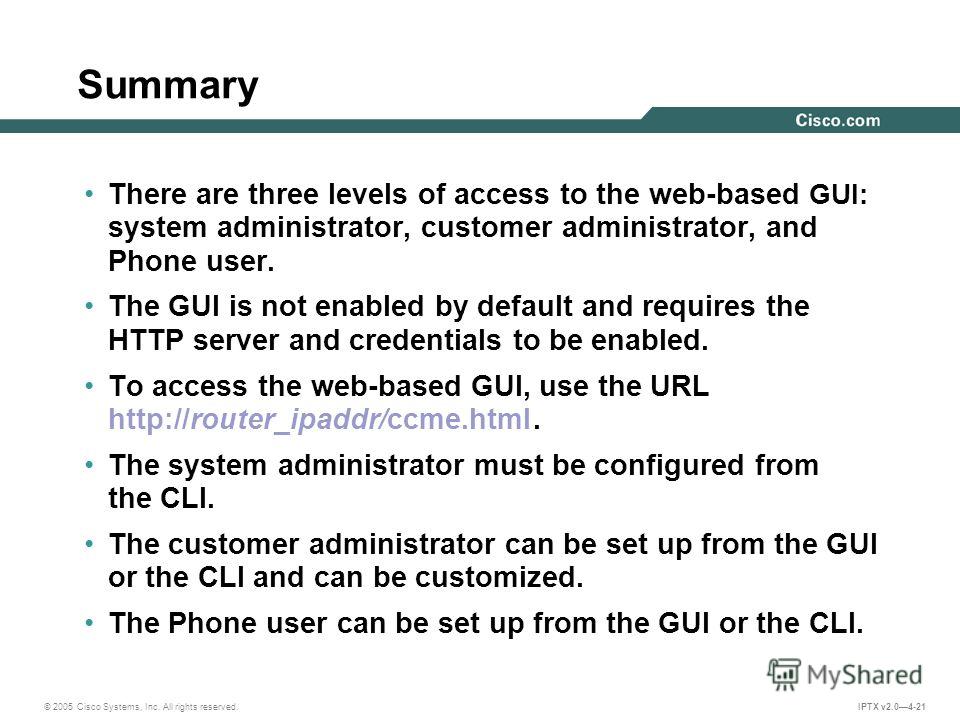

21 © 2005 Cisco Systems, Inc. All rights reserved. IPTX v Summary There are three levels of access to the web-based GUI: system administrator, customer administrator, and Phone user. The GUI is not enabled by default and requires the HTTP server and credentials to be enabled. To access the web-based GUI, use the URL. The system administrator must be configured from the CLI. The customer administrator can be set up from the GUI or the CLI and can be customized. The Phone user can be set up from the GUI or the CLI.
